Decoder 4 Bit to 16 Line

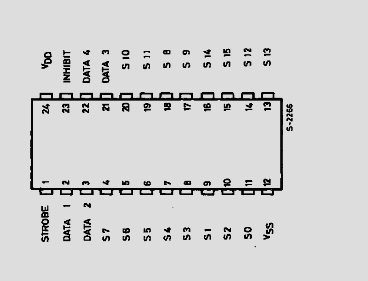

Decoder 4 bit to 16 line HCC4514B/HCC4515B are monolithic integrated circuits available in 24-lead dual in-line plastic or ceramic package and plastic micro package. The HCC/HCF4514B/4515B consisting of a 4-bit strobed latch and a 4 to 16 line decoder. The latches hold the last input data presented prior to the strobe transition from 1 to 0.Inhibit control allows all outputs to be placed at HCC/HCF4514B/4515B regardless of thestateofthedata or strobe inputs. The decode truth table indicates all combinations of data inputs and appropriate selected outputs.

Decoder 4 Bit to 16 Line HCC4514B/HCC4515B Decoder 4 Bit to 16 Line HCC4514B/HCC4515B

Absolute maximum rating HCC4514B/HCC4515B decoder 4 bit to 16 line
  • Supply Voltage: 0.5 to + 18 V
  • Input Voltage: 0.5 to VDD + 0.5 V
  • Total Power Dissipation (per package): 100 mW
  • Operating Temperature : 40 to + 85 C
  • Storage Temperature – 65 to + 150 C
Note:
Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections

decoder Logic diagramdecoder Logic diagram

truth table IC decoder HCC4514B/HCC4515Btruth table IC decoder HCC4514B/HCC4515B
